GT Digger Trailer: The Ultimate Machine Hauler
Stop worrying about weight limits and road stability. The GT Digger Trailer range is built tough for NZ conditions, featuring a robust, fully hot-dip galvanised monocoque chassis designed to handle the daily grind with ease. Whether you're moving a mini-digger or heavy plant, our tandem axle design and hydraulic override disc brakes ensure a smooth, compliant tow every time.
For those requiring maximum capacity, we showcase the GT Digger MAX 3500 (Digamax). Fully certified to NZ standards, the Digamax features a premium Knott braking system, providing the gold standard in safety and legal compliance for 3.5-tonne transport.
- Certified Reliability: The Digamax 3500 is fully tested and certified to NZ standards.
- Built to Last: Hot-dip galvanised monocoque chassis for maximum protection.
- Serious Capacity: Optimised payloads to suit 1.7T through to heavy 2.8T machines.
- Safety First: Premium braking systems (including Knott) for heavy-duty stopping power.
STANDARD FEATURES ON ALL OUR GT DIGGER & PLANT TRAILERS:
- New Zealand fabricated and assembled
- Monocoque chassis for strength
- Welded steel/tread plate construction
- Fully hot-dip galvanised
- Heavy duty tie down points
- Tandem axles with self-equalising leaf spring suspension
- Hydraulic override disc braking system (2500kg) or mechanical brake system (3000kg and 3500kg)
- Tread plate steps front and rear
- Laminated marine plywood deck
- 4 position tail gate

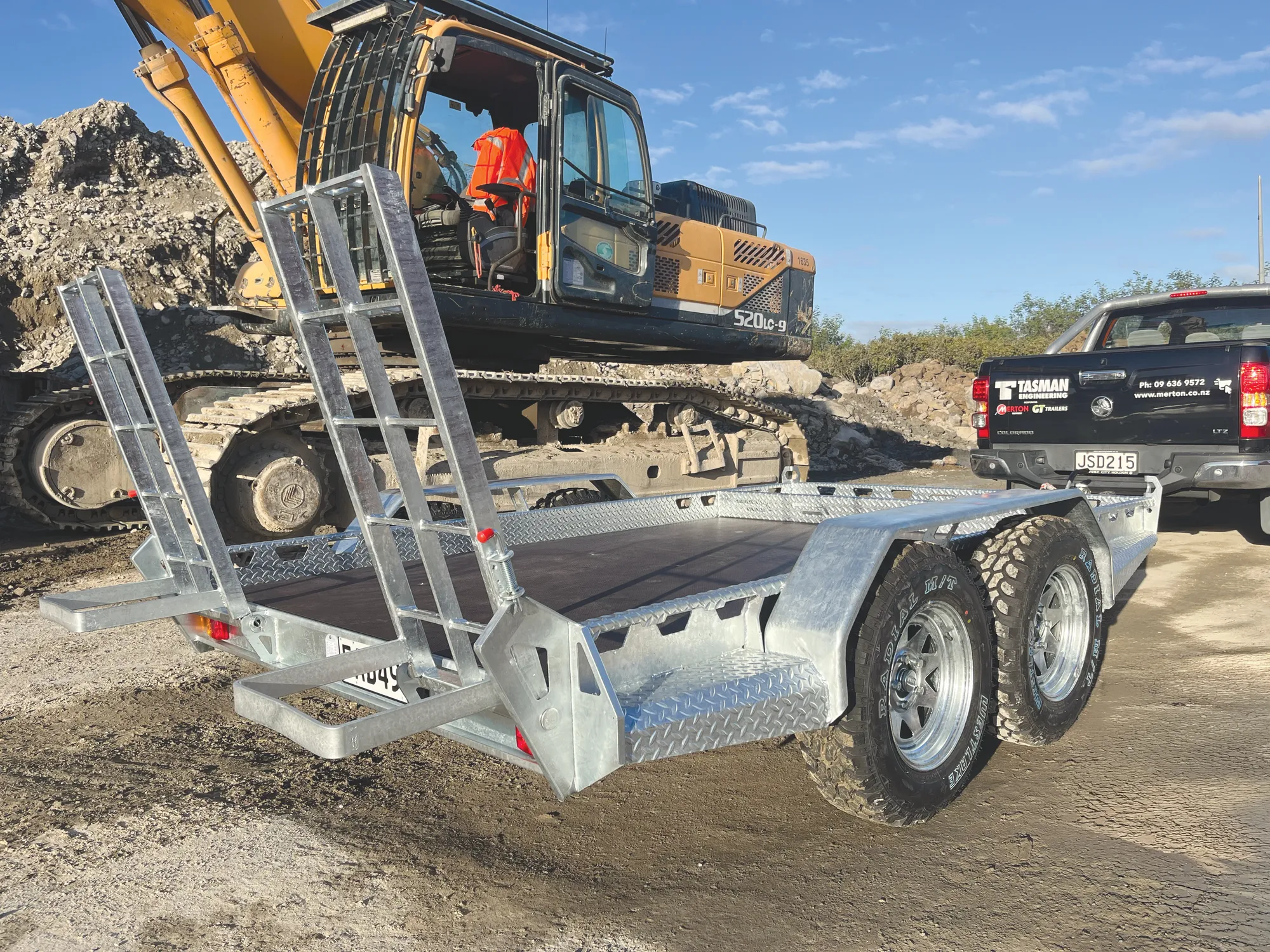

- Width adjustable and slam shut ramps
- LED lights 9-33v compatible
- Jockey wheel or machinery stand
- Poly bucket rest strips
- We guarantee our range of quality trailers for 2 years
2500kg Digger Trailers - Hydraulic Braked Models

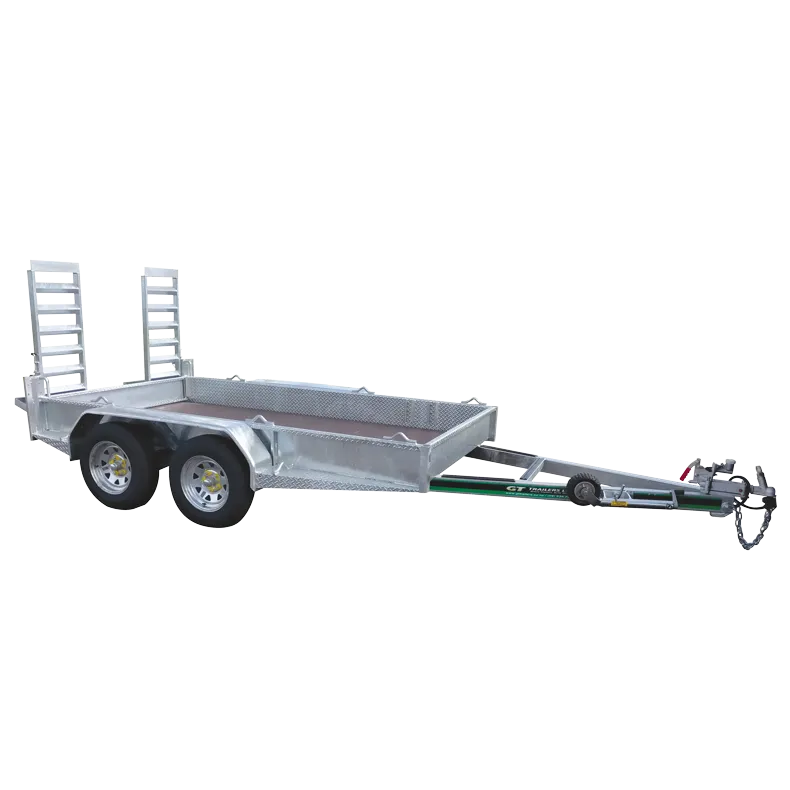

2500kg Digger Trailer 2.95m x 1.45m Tandem Axle - CTDIG25
2500kg GVM Tandem Axle Digger Trailer (CTDIG25). Hydraulic brakes, 2.95m x 1.45m deck, and 1970kg payload. Durable NZ-built quality for excavators and machinery.
| Product Code | CTDIG25 |
| Deck Area | 2.95m × 1.45m |
| Braking | Hydraulic |
| Tandem Axle | Yes |
| GVM* | 2,500 kg |
| Payload | 1,970 kg |

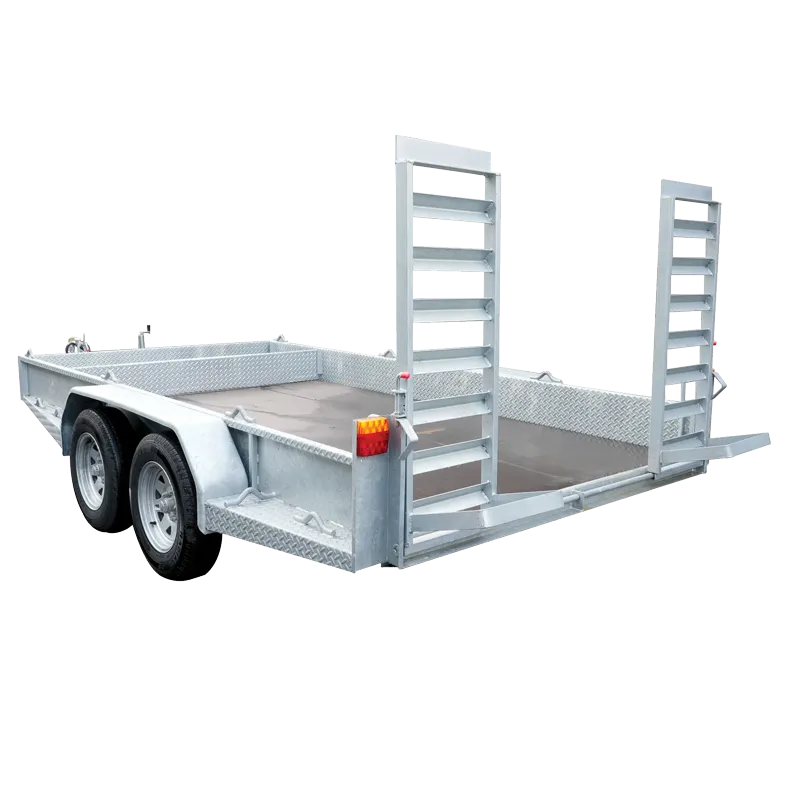

2500kg Digger Trailer 3.60m x 1.80m Tandem Axle - CTDIG25L
2500kg GVM Tandem Axle Digger Trailer (CTDIG25L). Hydraulic brakes, large 3.60m x 1.80m deck, and 1870kg payload. Heavy-duty construction for NZ contractors.
| Product Code | CTDIG25L |
| Deck Area | 3.60m × 1.80m |
| Braking | Hydraulic |
| Tandem Axle | Yes |
| GVM* | 2,500 kg |
| Payload | 1,870 kg |
3000kg Digger Trailers - Mechanical Braked Models

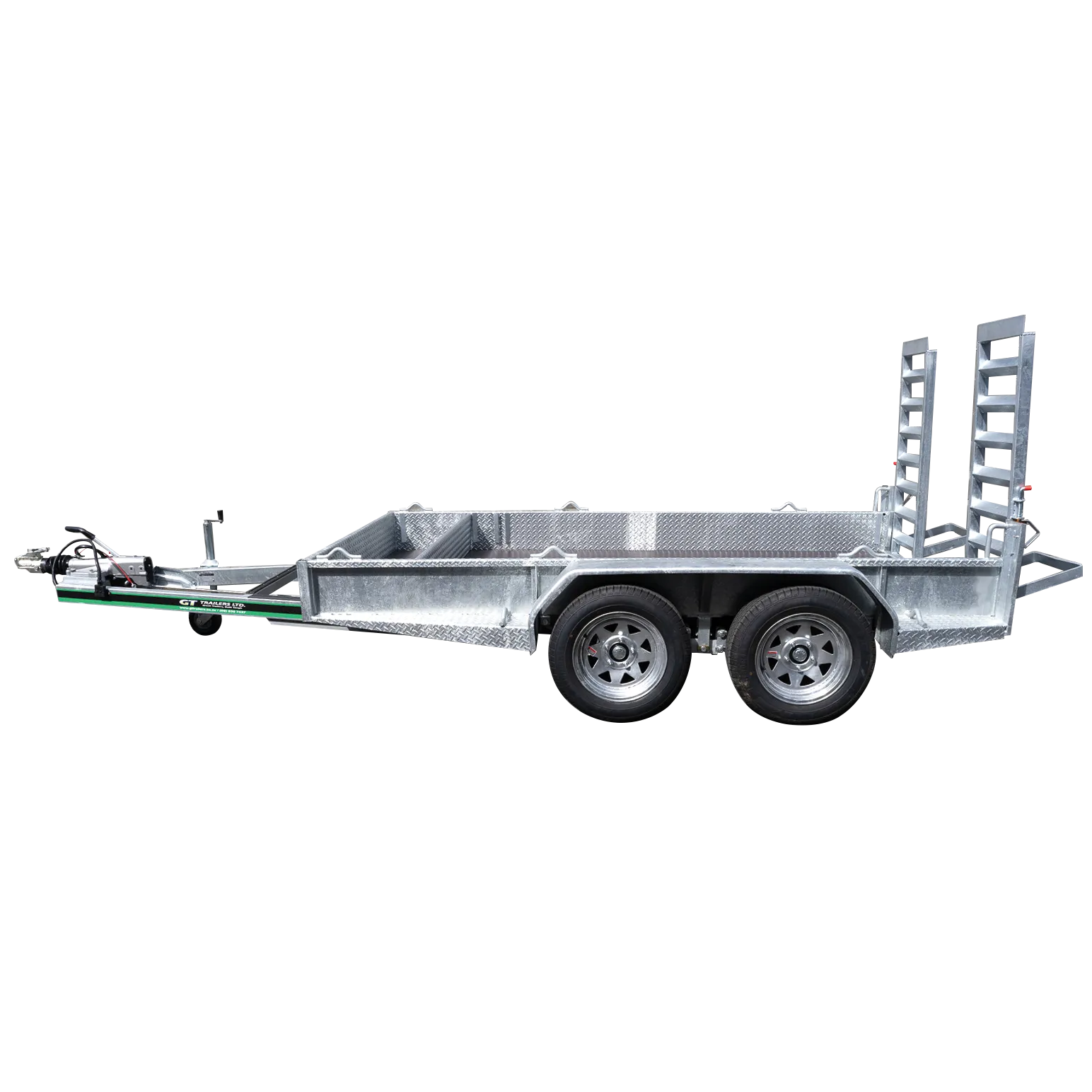

3000kg Digger Trailer 2.95m x 1.45m Tandem Axle - CTDIG30
3000kg GVM Tandem Axle Digger Trailer (CTDIG30). Mechanical brakes, 2.95m x 1.45m deck, and 2390kg payload. Reliable plant transport for mid-sized machinery.
| Product Code | CTDIG30 |
| Deck Area | 2.95m × 1.45m |
| Braking | Mechanical |
| Tandem Axle | Yes |
| GVM* | 3,000 kg |
| Payload | 2,390 kg |
3000kg Digger Trailer Large 3.60m x 1.80m Tandem Axle - CTDIG30L
3000kg GVM Tandem Axle Digger Trailer (CTDIG30L). Mechanical brakes, 3.60m x 1.80m deck, and 2290kg payload. NZ-compliant safety for stable, heavy-duty towing.
| Product Code | CTDIG30L |
| Deck Area | 3.60m × 1.80m |
| Braking | Mechanical |
| Tandem Axle | Yes |
| GVM* | 3,000 kg |
| Payload | 2,290 kg |
3500kg Digger Trailers - Heavy Duty Models
3500kg Heavy Duty Digger Trailer 2.95m x 1.45m Tandem Axle - CTDIG35
3500kg GVM Tandem Axle Digger Trailer (CTDIG35). 2.95m x 1.45m deck and 2850kg payload. Maximum stability and safety for heavy excavators on New Zealand roads.
| Product Code | CTDIG35 |
| Deck Area | 2.95m × 1.45m |
| Braking | Mechanical |
| Tandem Axle | Yes |
| GVM* | 3,500 kg |
| Payload | 2,850 kg |

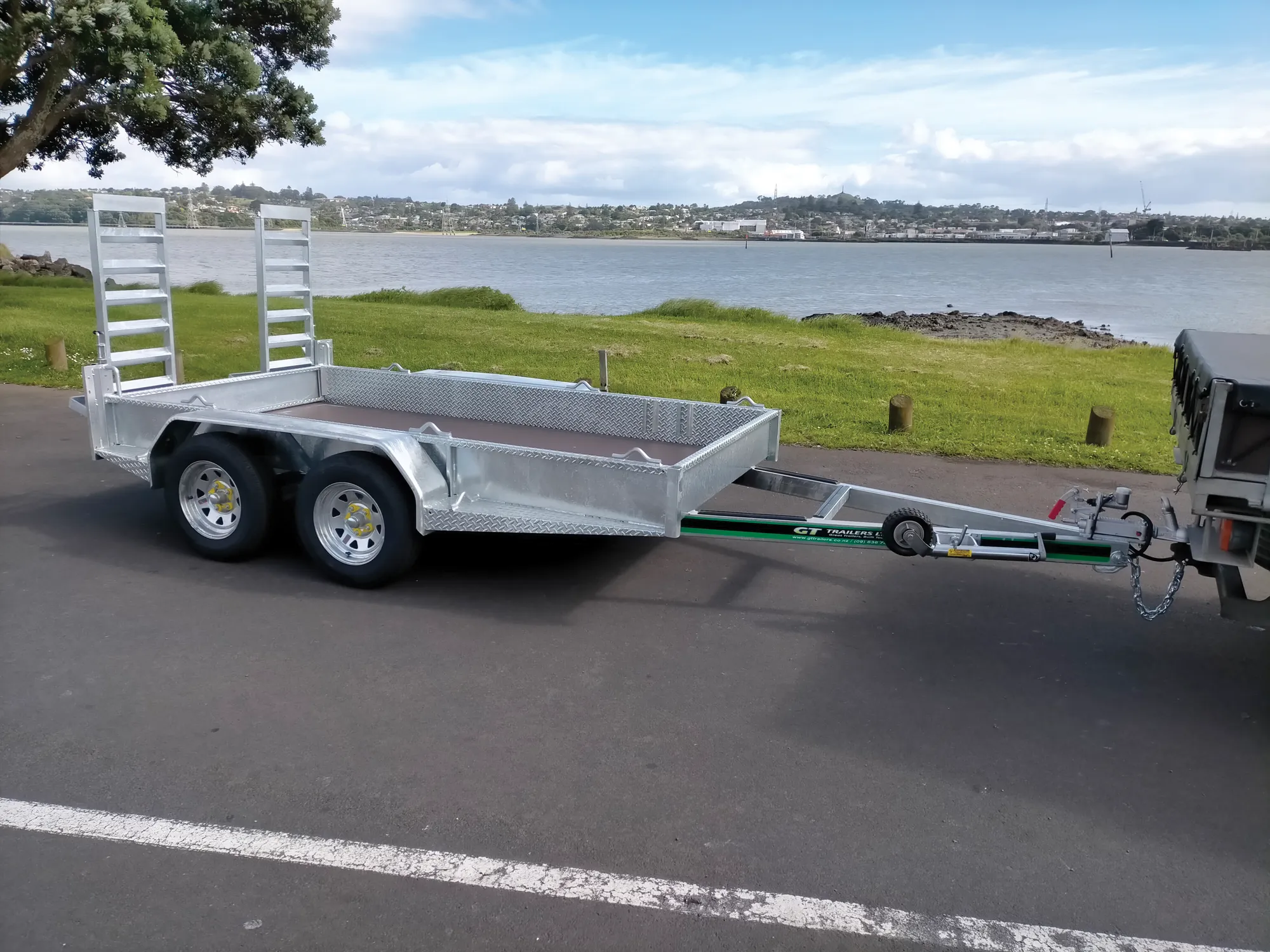

3500kg Digger Trailer Wide 2.95m x 1.80m Tandem Axle - CTDIG35M
3500kg GVM Tandem Axle Digger Trailer (CTDIG35M). Wide 2.95m x 1.80m deck, mechanical brakes, and 2800kg payload. Ideal for wider machinery and equipment.
| Product Code | CTDIG35M |
| Deck Area | 2.95m × 1.80m |
| Braking | Mechanical |
| Tandem Axle | Yes |
| GVM* | 3,500 kg |
| Payload | 2,800 kg |

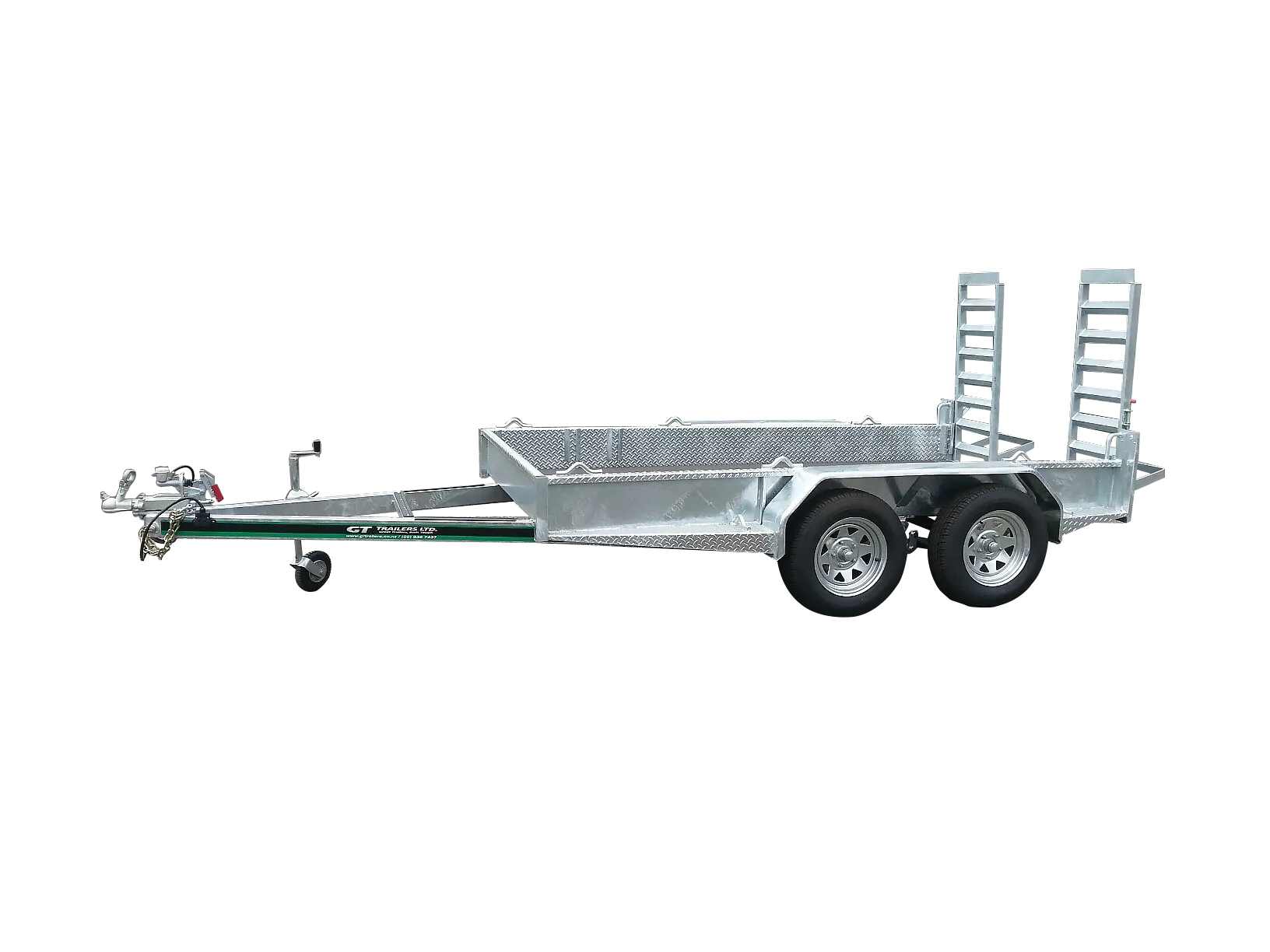

3500kg Extra Large Digger Trailer 3.60m x 1.80m Tandem Axle - CTDIG35L
3500kg GVM Tandem Axle Digger Trailer (CTDIG35L). Extra-large 3.60m x 1.80m deck and 2700kg payload. The ultimate transport for long-reach machines and tools.
| Product Code | CTDIG35L |
| Deck Area | 3.60m × 1.80m |
| Braking | Mechanical |
| Tandem Axle | Yes |
| GVM* | 3,500 kg |
| Payload | 2,700 kg |

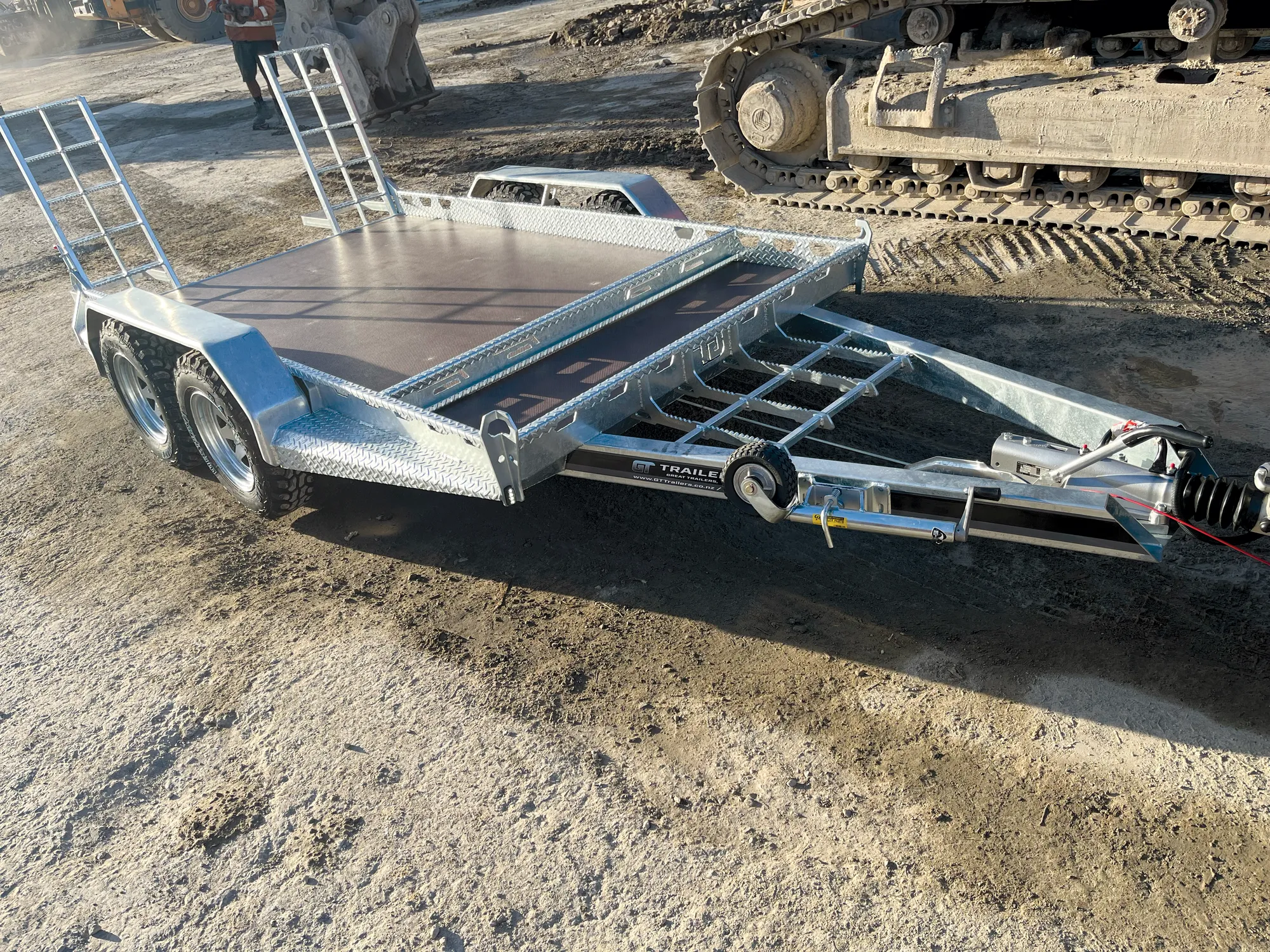

3500kg Digger MAX Trailer - Certified NZ compliant

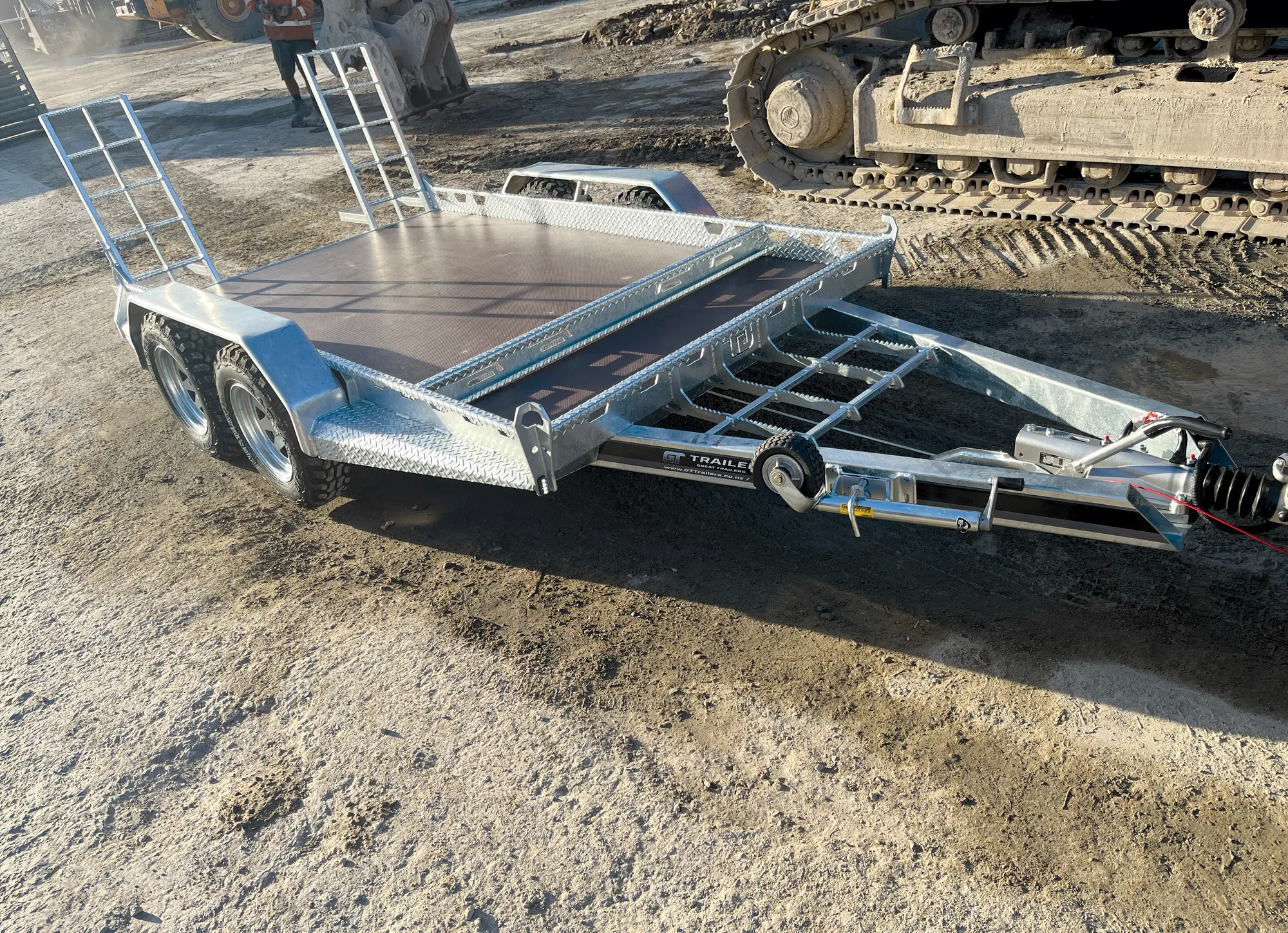

3500kg Digger MAX Trailer 2.40m x 1.70m Certified NZ compliance - CTDIGMAX35
The CTDIGMAX35 is the certified for 3.5T transport. Features a Knott 3500kg braking system and compact 2.40m x 1.70m high-strength deck. 2850kg payload.
| Product Code | CTDIGMAX35 |
| Deck Area | 2.40m × 1.70m |
| Braking | Knott 3500kg breakaway |
| Tandem Axle | Yes |
| GVM* | 3,500 kg |
| Payload | 2,850 kg |
Model Specifications
| MODEL | DECK AREA | BRAKING | TANDEM AXLE | GVM* | PAYLOAD |
|---|---|---|---|---|---|
| CTDIG25 | 2.95m x 1.45m | Hydraulic | Yes | 2500kg | 1970kg |
| CTDIG25L | 3.60m x 1.80m | Hydraulic | Yes | 2500kg | 1870kg |
| CTDIG30 | 2.95m x 1.45m | Mechanical | Yes | 3000kg | 2390kg |
| CTDIG30L | 3.60m x 1.80m | Mechanical | Yes | 3000kg | 2290kg |
| CTDIG35 | 2.95m x 1.45m | Mechanical | Yes | 3500kg | 2850kg |
| CTDIG35M | 2.95m x 1.80m | Mechanical | Yes | 3500kg | 2800kg |
| CTDIG35L | 3.60m x 1.80m | Mechanical | Yes | 3500kg | 2700kg |
| CTDIGMAX35 | 2.40m x 1.70m | Knott 3500kg breakaway | Yes | 3500kg | 2850kg |
GVM* description: Gross Vehicle Mass (total max. weight of trailer & load).
